Description:
Model: FE200T
Item name: FPV Transmitter
Input voltage: DC 4.5-5.2V
Input current: 200MW = 400 MA
Power switching: third gear 25MW, 100MW, 200MW
Signal channels: 40
Frequency point switching: manual button / OSD (IRC Tramp) (also supported)
Antenna interface: IPEX

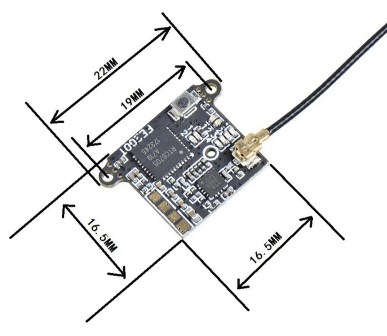

Dimensions: 16.5MM * 16.5MM

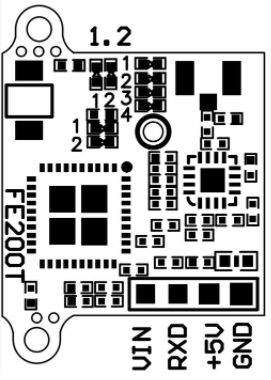

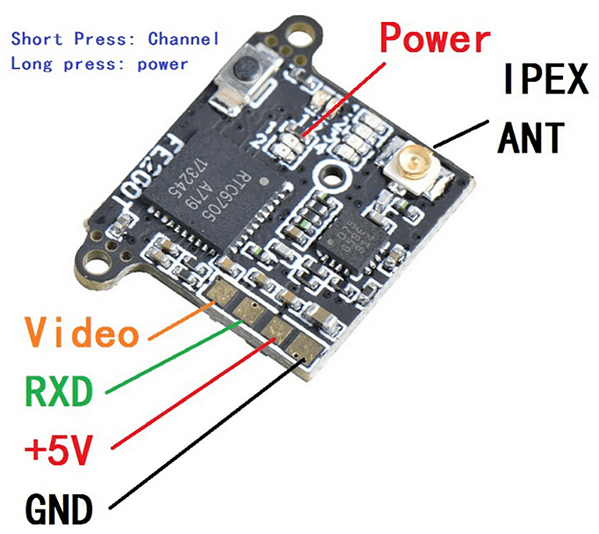

GND: power negative
+ 5V: power positive
RXD: flight control serial transmission
VIN: camera video input

Manual adjustment Switch the frequency.
   Short press: switch channels, 4 blue LEDs and 3 green LEDs indicate channels.

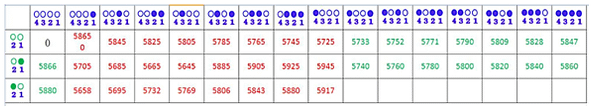

   There are 40 frequency points in total, the specific frequency reference to the frequency list:

Power switching:
Long press (greater than 2 seconds) Power adjustment. Press once to switch power 25MW, 100MW, 200MW. Default 200MW.
